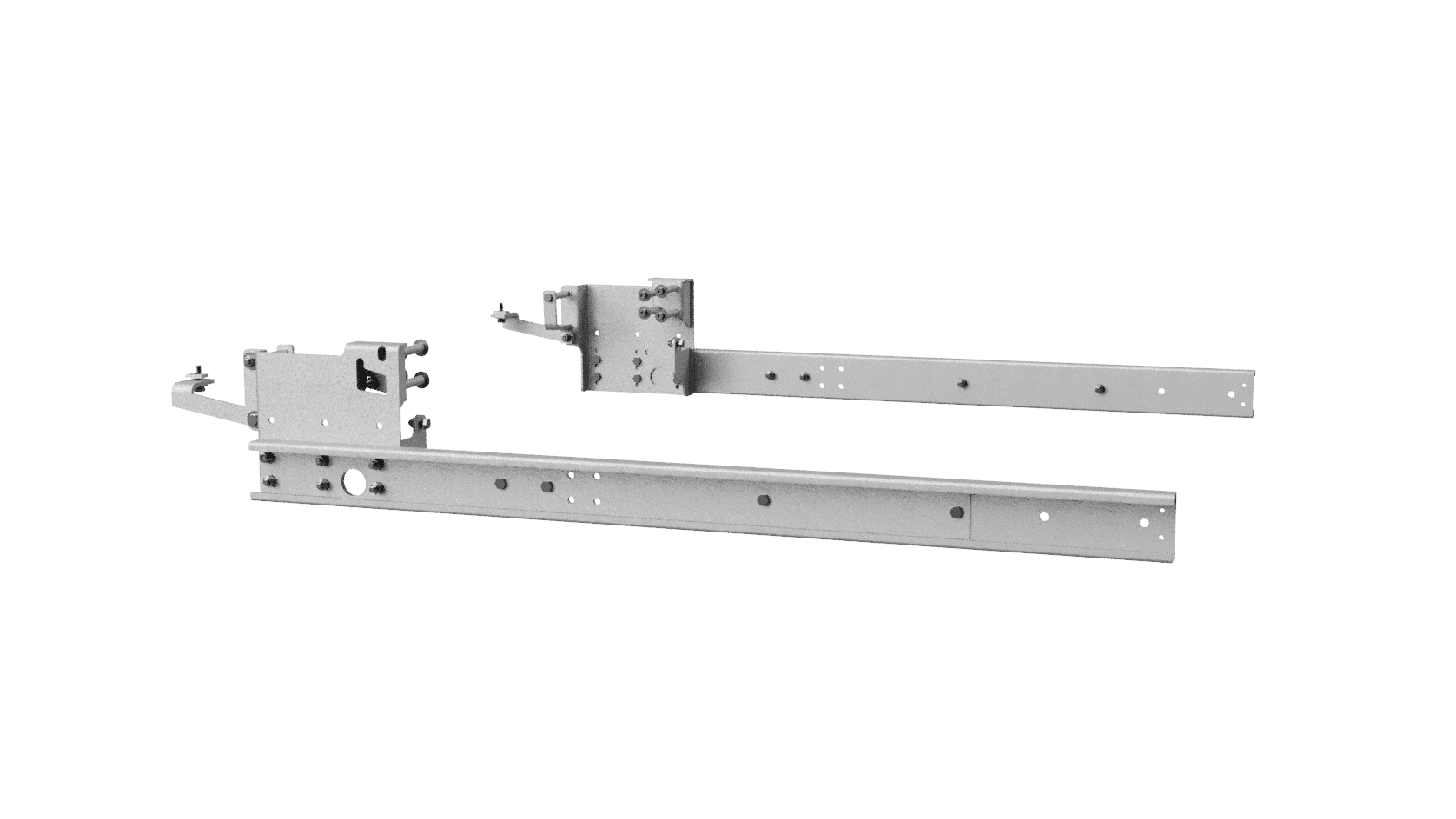

Basis Fiat Ducato X250

Chassis Extension Fiat Ducato X250: Load-Bearing Base for Motorhomes and Panel Vans

The chassis extension for the Fiat Ducato X250 creates a load-bearing base at the rear of motorhomes and panel vans. It is designed for vehicles that do not already have a load-bearing chassis extension and serves as a stable mounting point for rear-mounted accessories. The chassis extension is supplied at a length of 1500 mm (optionally 1600 mm) and can be shortened to the required dimension prior to installation.

Technical Features

• Material: Steel, robustly designed for the permanent support of rear-mounted loads on the motorhome.
• Surface: Hot-dip galvanising as corrosion protection for long-term use under vehicle conditions.
• Nose weight: Up to 150 kg permissible nose weight on the chassis extension.
• Length: 1500 mm as supplied, optionally 1600 mm, individually shortenable to the required dimension.
• Weight: Approximately 38 kg.
• Certification: Supplied with EC type approval for registration-relevant applications.

Your Advantages

• Individually adaptable: You can shorten the extension precisely to suit your vehicle and installation situation.
• Corrosion protection: The hot-dip galvanising permanently protects the steel structure against rust.
• Defined load capacity: With a nose weight of 150 kg, you create a load-bearing foundation for rear-mounted accessories.
• Vehicle-specific: Designed for the chassis of the Fiat Ducato X250 and structurally identical models.

Compatibility

The chassis extension is compatible with the Fiat Ducato X250/X290 as well as the structurally identical models Citroën Jumper and Peugeot Boxer.

• Fiat Ducato (X250 / X290, from 2006)
• Citroën Jumper (structurally identical, from 2006)
• Peugeot Boxer (structurally identical, from 2006)

Not suitable for: Vehicles that already have a load-bearing chassis extension fitted as standard. Additionally, a sufficient rear overhang of the vehicle is required.

Who is this chassis extension suitable for? It is aimed at converters and motorhome owners who require a load-bearing base at the rear of a Fiat Ducato, Citroën Jumper or Peugeot Boxer and do not yet have a suitable factory-fitted extension. This SMV chassis extension is available on request with an installation service through our authorised dealer network.
